1D hydro-sedimentary simulation at INRAE

COMMENT 1D river flow simulation

INRAE (Lyon-Villerbanne)

• Mage ¹
• RubarBE [fn:: RubarBE: https://gitlab.irstea.fr/theophile.terraz/rubarbe]

Other project

• Mascaret ²
• HEC-RAS [fn:: HEC-RAS: https://www.hec.usace.army.mil/software/hec-ras]
• Mike 11 [fn:: Mike11: https://www.mikepoweredbydhi.com/products/mike-11]

{{{pamhyr}}}

{{{pamhyr}}} developed at INRAE in Java since the end of 90s

Features

• Graphical user interface
• Define and edit complexe 1D river models
• Run a solver
• Visualize simulation results

Compatibility

• 2 solvers Mage and RubarBE

• Multi-platform (Linux / Windows)

{{{pamhyr}}}

Conception issues

• Monolingual French
• Interface too different for each solver
• Impossible to undo an action

Huge technical debts

• Out dated technologies (UML $\to$ Java)
• Unmaintained library
• Unstable development process

Hard to maintain or add features to the interface

(No modification since 2016)

Presentation of {{{pamhyr2}}}

{{{Pamhyr2}}} - Needs - General constraints

Create a new version of {{{pamhyr}}} called {{{pamhyr2}}}

{{{pause}}}

Constraints for users experience

• User friendly
• Multi platform (at least Linux and Windows)
• Multi language (at least English and French)
• Multi solver (as much as possible, at least Mage and RubarBE)
• Single save file per study

{{{pause}}}

Constraints for developers experience

• Common used code library and tools

• Clear architecture
• Free and open sources software (FOSS)

{{{Pamhyr2}}} - Needs - Features

{{{no}}}

• Define and edit data

  • River network
  • Geometry
  • Boundary conditions
  • Friction
  • Initial conditions
  • Sedimentary layers
• User meshed geometry
• Run a solver

• Display results

  • Default visualisation
  • Customized visualisation

{{{no}}}

{{{pamhyr2}}} - Technical choices

Technologies

• Python
• PyQt
• Qt Designer
• Qt Linguist
• Matplotlib
• SQLite (as *.pamhyr)
• GPLv3 license (strong copyleft)

Architecture

• Qt Model/View
• Multiple solvers configuration
• Unified interface, as much as possible

{{{pamhyr2}}} - State of the project

{{{no}}}

\vspace{-1.5cm}

\begin{center} \emph{Last version:} \texttt{v0.0.3} \end{center}

{{{pause}}}

\textbf{Features}	\textbf{State}
Create save and load study	{{{OK}}}
Undo/Redo actions	{{{OK}}}
Edit river network	{{{OK}}}

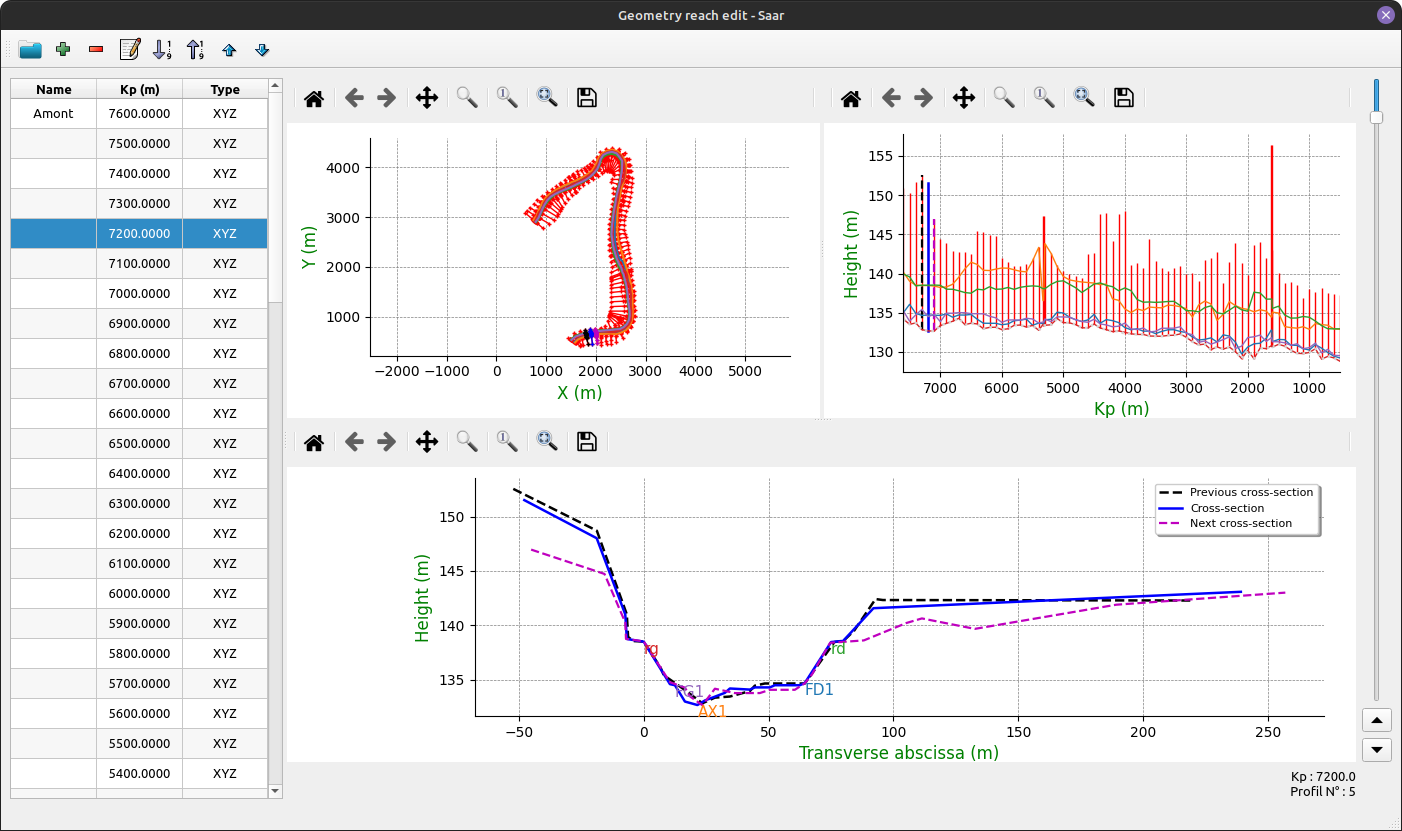

Edit geometry	{{{OK}}}
Edit boundary conditions	{{{OK}}}
Edit lateral contributions	{{{OK}}}
Edit frictions (Stricklers)	{{{OK}}}
Edit initial conditions	{{{OK}}}
Edit sedimentary layers	{{{OK}}}
Edit hydraulics structures
Edit suspended sediment
Edit polluant
Use meshing tool	WIP
Run a solver	{{{OK}}}
Read and display results	{{{OK}}}
Customize results visualisation	WIP
Generic solver input/output

{{{pause}}}

{{{no}}}

\vspace{2.5cm}

\textbf{Usage}	\textbf{Mage}	\textbf{RubarBE}	\textbf{Mascaret}
Hydraulics (mono reach)	{{{OK}}}		{{{OK}}}
Hydraulics (multi reach)	{{{OK}}}
Bed load evolution	{{{OK}}}

\textbf{Packages}	\textbf{GNU/Linux}	\textbf{Windows}
Archive (tar/zip)	{{{OK}}}	{{{OK}}}
Installer		{{{OK}}}

Future work and perspective

Future work

Next step

• Meshing tools integration

• Custom results visualisation

  • Python + matplotlib script
• RubarBE integration
• Hydraulics structures
• Unified graphics theme

Open questions

• Generic solver input/output (HDF5? CGNS? SQLite?)
• GNU/Linux packages (Pip? Conda? Guix? Deb?)

Contribution

\faIcon{gitlab} https://gitlab.com/pamhyr/pamhyr2/

For users

• Try {{{pamhyr2}}}
• Report bug
• Propose improvement
• Improve translation
• Improve user documentation
• Improve tests cases examples
• Find better project name

For developers

• Add new solver / features
• Improve sources code
• Improve developers documentation
• Improve unit tests

Thanks for listening

\faIcon{gitlab} https://gitlab.com/pamhyr/pamhyr2/

Journées de la modélisation 1D hydro-sédimentaire (in French)

30 & 31 janvier 2024, INRAE Villeurbanne

Information and registration: <benoit.camenen@inrae.fr>

• {{{pamhyr2}}} developers:

  • <pierre-antoine.rouby@inrae.fr>,
  • <theophile.terraz@inrae.fr>

• Mage/RubarBE developer:

  • <theophile.terraz@inrae.fr>

---
